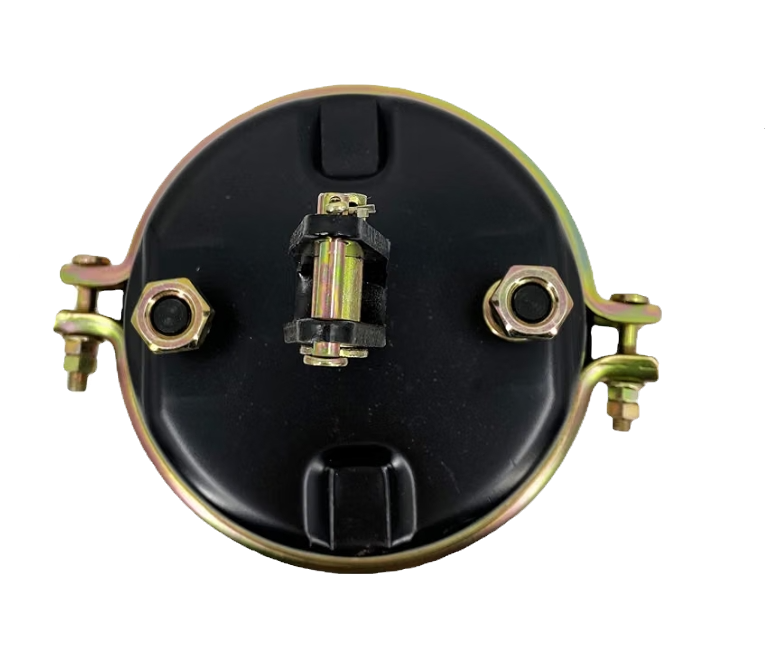

Bendix K067114 Air Brake Chamber W/ Welded Clevis 2.5" Short Stroke Type 30/30

Cross References- K129605 // GC3030CW GC3030S4CW // BTS-3030-WCR GTA-3030-WCR // 179.SB3030SW1100
SPECS - Actuator Type Size: 3030 // Stroke Type: Short Stroke // Available Stroke: 2-1/2" // Length from mounting bracket to end of Spring Housing: 9" // Length of Piggyback: 6-13/16" // Dimension at rolled Spring Housing flange: 8-5/16" // Dimension at Service Clamp band: 10-3/16" // Pushrod Length from face of Service Housing: 1" // Distance to Clevis Pin centerline from face of Service Housing: 2-1/4" // Weight: 21.3 lbs.
